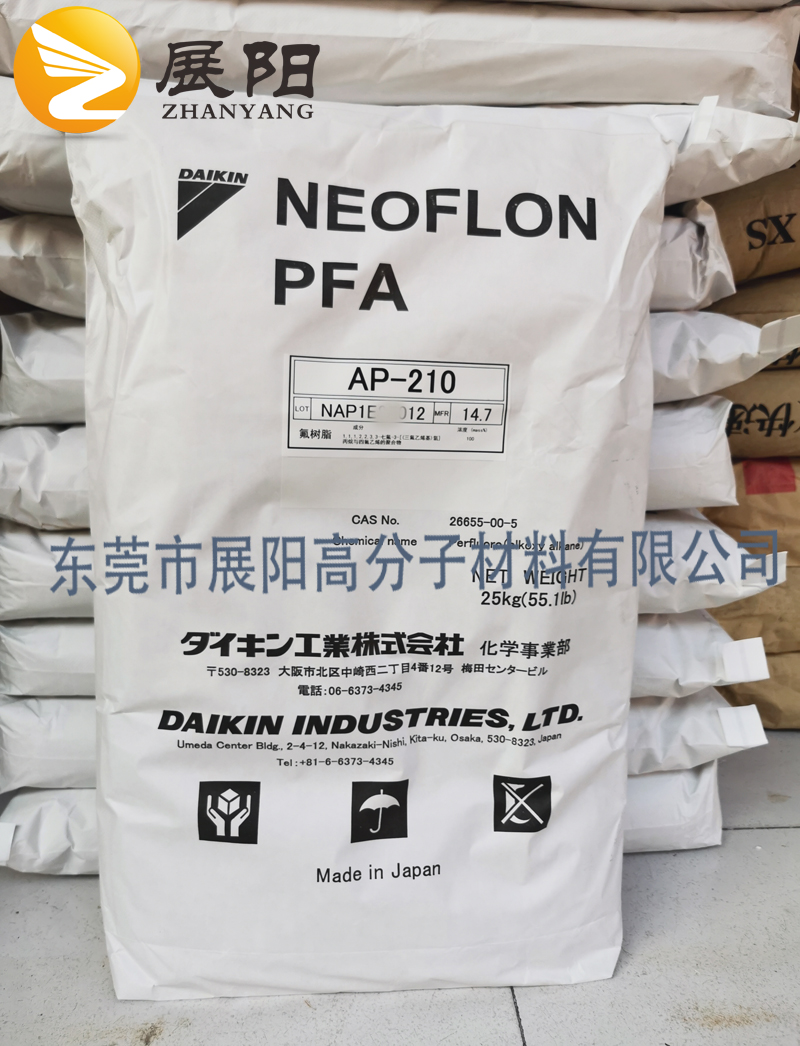

Neoflon® PFA AP-210
Introduction
AP-210 is a copolymer of tetrafluoroethylene and perfluoroalkyl vinyl ether.
Good melt flowability while maintaining excellent properties of PTFE. It can be melt-molded as a thermoplastic resin by injection molding and extrusion molding.
Excellent chemical resistance which is not affected by most of the chemicals.
Excellent heat resistance. Continuous use temperature is 260°C.
It retains flexibility without losing toughness under the environment from cryogenic to high temperature.
Low dielectric constant and dielectric loss tangent in a wide range of temperature and frequency.
It shows high electrical resistance and dielectric strength.
Nonflammable like POLYFLON PTFE and NEOFLON FEP.
Excellent weather resistance. No properties change even when exposed outside for a long time.
Non-stickiness. It shows excellent releasability and water repellency / oil repellency.
总览 | |
材料状态 |
|
资料 1 |
|
搜索 UL 黄卡 |
|
供应商 | 东莞市展阳高分子材料有限公司 |
特性 | 共聚物良好的柔韧性流动性高耐候性,良好耐化学品性能,良好耐热性,高韧性良好 |
加工方法 | 挤出注射成型 |
物理性能 | 额定值 | 单位制 | 测试方法 |
密度 / 比重 | 2.14 | g/cm³ | ASTM D792 |
熔流率(熔体流动速率) (372°C/5.0 kg) | 14 | g/10 min | ASTM D3307 |
机械性能 | 额定值 | 单位制 | 测试方法 |
抗张强度 | 31.0 | MPa | ASTM D1708 |
伸长率 (断裂) | 420 | % | ASTM D1708 |
热性能 | 额定值 | 单位制 | 测试方法 |
连续使用温度 | 260 | °C | |
熔融温度 | 306 | °C | DSC |
